Basic Info.
Model NO.
9*13*12mm
Load Direction
Radial Bearing
Style
With Outer Ring
Material
Bearing Steel
Type
Closed
Product Name
Drawn Cup Needle Roller Bearings HK2216
Size
9*13*12mm
Weight
0.0046kg
Basic Dynamic Load Rating
5.12kn
Basic Static Load Rating
6.4 Kn
Fatigue Load Limit
0.72kn
Reference Speed
18000r/Min
Limiting Speed
20000r/Min
Vibration
Zv1, Zv2, Zv3, or as Requested
Certification
ISO9001:2008
Transport Package
Single Box Packaging/OEM
Specification
16x22x16mm
Trademark
TFN/OEM
Origin
China
HS Code
8482102000
Production Capacity
10000/Month
Packaging & Delivery
Package Size
40.00cm * 40.00cm * 40.00cm
Package Gross Weight
2.000kg
Product Description

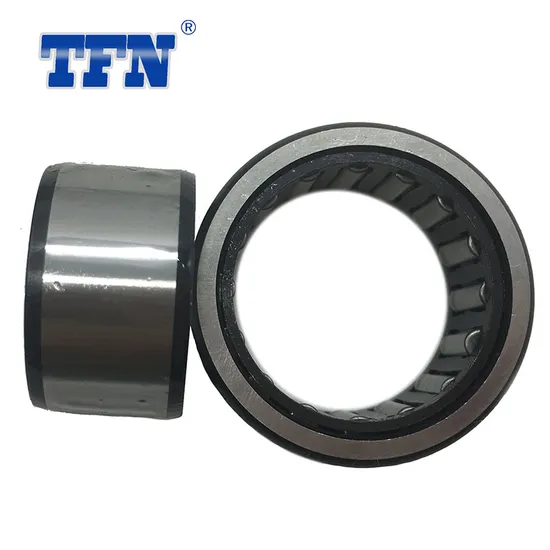

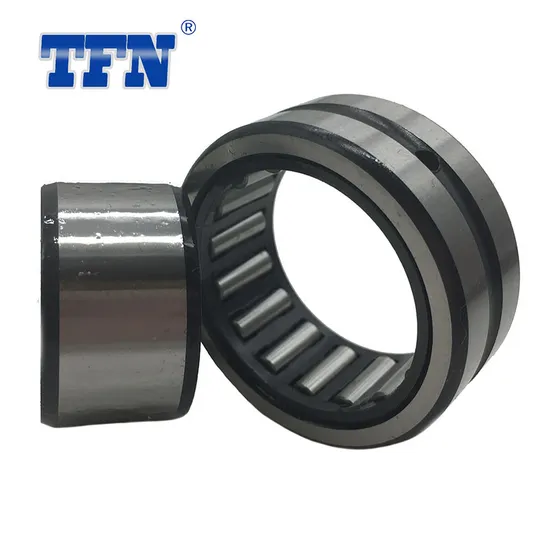

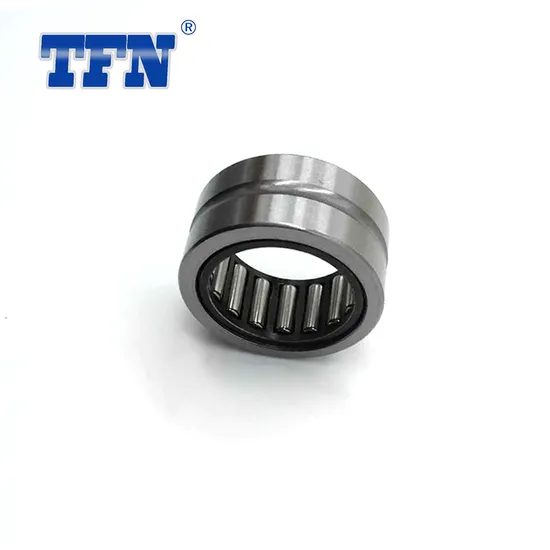

Drawn Cup Needle Roller Bearings 9*13*12mm HK0912
HK0912 Needle Roller Bearing
| production name | Drawn Cup Needle Roller Bearings 9*13*12mm HK0912 |
| brand | TFN/OEM |
| Model Number | HK0912 |
| Dimension | 9*13*12mm |
| Basic dynamic load rating | 5.12kN |
| Basic static load rating | 6.4 kN |
| Fatigue load limit | 0.72kN |
| Reference speed | 18000r/Min |
| Limiting speed | 20000r/Min |
| Ring Material | Gcr15/ Carbon Steel/ Stainless Steel/ Si3N4/ ZrO2 |
| Cage Material | Steel/ Brass/ Nylon/ Custom |
| Precision | P0, P6, P5, or as requested |
| Vibration | ZV1, ZV2, ZV3, or as requested |
| Clearance | C0,C2,C3, or as requested |
| Quality standard | ISO9001:2000/ SGS |
| Quality Control Process | 1.Assembly |
| 2.Windage test2.Windage test | |
| 3.Cleaning | |
| 4.Rotary test | |
| 5.Greasing and gland | |
| 6.Noise inspection | |
| 7.Appearance inspection | |
| 8.Rust prevention | |
| 9.Product packaging | |
| Application | low noise machine,automobile,motorcycle,and the general machinery and etc. |
More model of Needle Roller Bearing
| Bearing Number | Boundary dimensions(mm) | Basic load ratings(N) | Limiting speeds(rpm) | Mass(g) | ||||||||||||||||
| Fw | D | C | Cr | Cor | Oil | (Approx.) | ||||||||||||||
| HK Series | HK0408TN | 4 | 8 | 8 | 1540 | 1070 | 4000 | 1.6 | ||||||||||||
| HK0509 | 5 | 9 | 9 | 2200 | 1790 | 36000 | 2 | |||||||||||||
| HK05X09X08 | 5 | 9 | 8 | 2200 | 1790 | 36000 | 1.9 | |||||||||||||
| HK0607 | 6 | 10 | 7 | 1600 | 1400 | 30000 | 1.8 | |||||||||||||
| HK0608 | 6 | 10 | 8 | 1830 | 1550 | 32000 | 2.1 | |||||||||||||
| HK0609 | 6 | 10 | 9 | 2650 | 2400 | 3000 | 2.2 | |||||||||||||
| ITEM | WHY IT MATTERS |
|---|---|
| Equipment or machine model | Confirms the bearing position and the components needed for assembly. |
| Full bearing suffix and brand | Seal type, clearance and execution are set by the suffix, not the base number. |
| Quantity per line | Lets distributors check line quantities and repeat-order references. |
| Destination country and postcode | Sets the shipping method, transport documents and applicable tax terms. |
| Required delivery date | Lets us plan around your shutdown or maintenance window. |
- Worn or unreadable markings?Send clear photos of the bearing markings and say which details still need checking.
- What the written quote listsReference, brand, quantity, price and currency, availability, estimated lead time, quote validity, and transport or tax terms.
MOUNTING COMPONENTS
Need housings or adapter sleeves? List them separately.
Housings, adapter sleeves and mounting components are quoted as their own lines. List each one separately in your enquiry so we can check the full assembly before quoting.
- Housing type and reference, if known
- Adapter sleeve, lock nut and washer as separate lines
- Quantity per assembly and total quantity
